\(QS38_{30}^{(1)}\)
Description

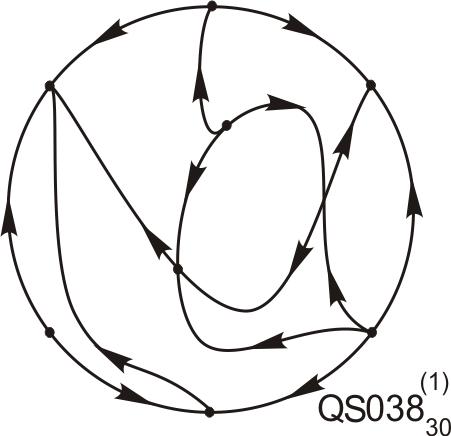

Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(38\) | \(443\) | \(211210\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = (1-e) \, x^{2}+2 \, h \, x \, y+(n-1-2 \, h) \, y^{2} \\ \dot{y} = y+c \, (1-e) \, x^{2}+(2+2 \, h-n) \, (1-e) \, x \, y-2 \, c \, x \, y+(c-2-2 \, h+2 \, n) \, y^{2} \end{cases}\]
with parameters: \(h = \frac{-7}{5}, \quad c = \frac{3}{10}, \quad n = -1, \quad e = 0.001\)

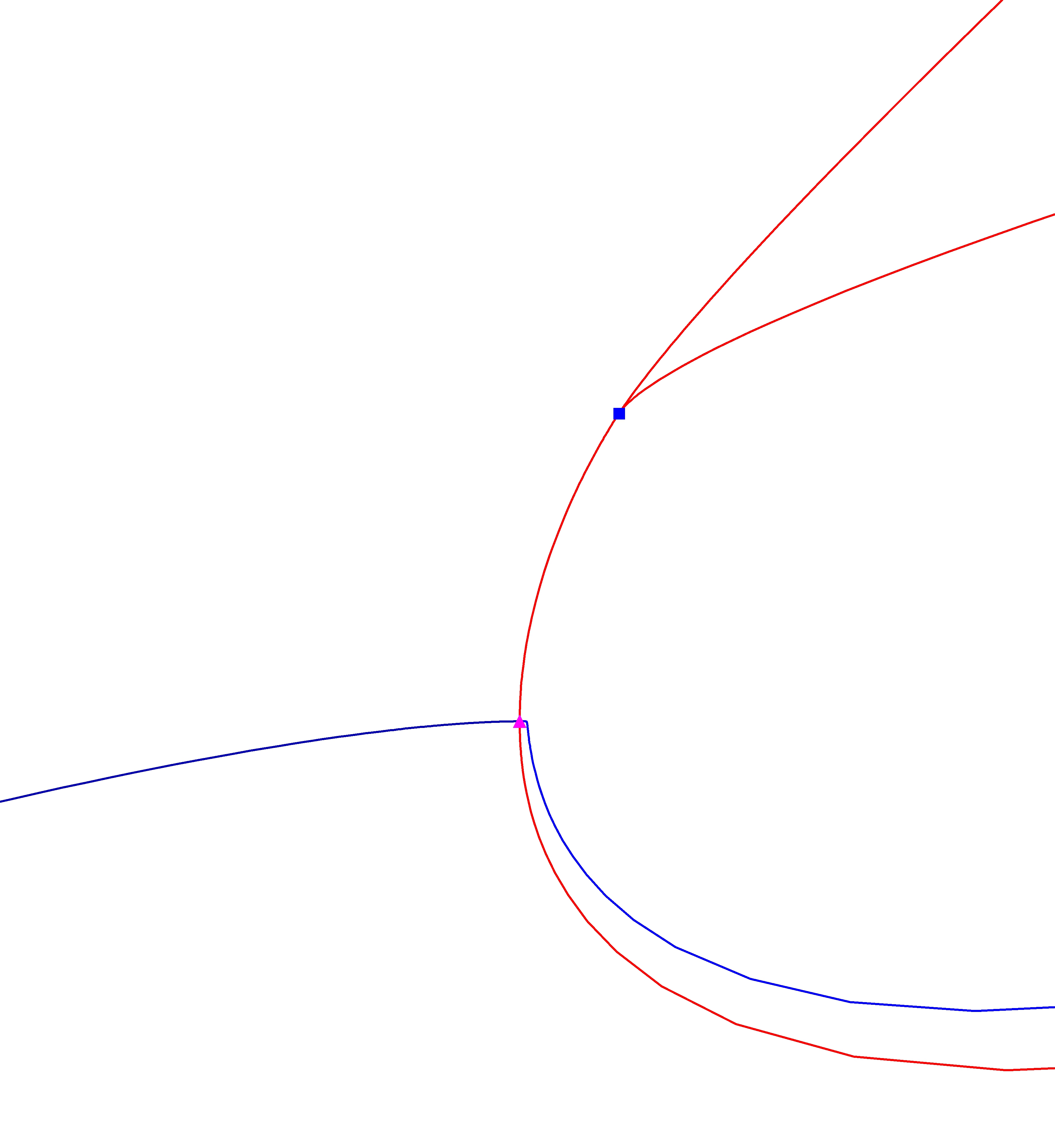

has the following phase portrait done with P4. If you want, you may download the P4 file here. Since the image is not clear enough, we have added a ZOOM of it.
The phase portrait appears in the following papers
- With names \(PP41\) and \(PP42\) in {J. C. Artés, J. Llibre and Huaxin Ou}, Quadratic systems with two invariant straight lines and an invariant hyperbola, {Preprint} (2026).
- With name \(26\) in {A. Belfar and R. Benterki}, Qualitative dynamics of five quadratic polynomial differential systems exhibiting five classical cubic algebraic curves, Rend. Circ. Mat. Palermo (2) { bf 72} (2023), no.~1, 393--420; MR4543844
- With name \(PP09\) in {J. Llibre and H. X. Ou}, Quadratic systems with two invariant real straight lines and an invariant hyperbola, {Preprint} (2026).
- With name \(Fig. 44\) in {J. Llibre and C. Pantazi}, Global phase portraits of the quadratic systems having a singular and irreducible invariant curve of degree 3. Internat. J. Bifur. Chaos Appl. Sci. Engrg. 33 (2023), no. 1, Paper No. 2350003, 54 pp.
- With name \(2L3\) in {M. C. Mota, R. D. S. Oliveira and A. M. Travaglini}, The interplay among the topological bifurcation diagram, integrability and geometry for the family { bf QSH(D)}, Geom. Dedicata { bf 217} (2023), no.~6, Paper No. 95, 42 pp.; MR4631488
- With name \(Ric. 20\) in {J. C. Artés, J. Llibre, D. Schlomiuk and N. Vulpe}, Global analysis of Riccati quadratic differential systems, Internat. J. Bifur. Chaos Appl. Sci. Engrg. { bf 34} (2024), no.~1, Paper No. 2450004, 46 pp.; MR4701478
- With name \(U^1_{A52}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
- With name \(Fig 21 P5K\) in {A. M. Travaglini}, Integrability and geometryof quadratic differential systems with invariant hyperbolas, {Ph. D., Uni. de Sao Paulo} (2026).
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS25_{1}^{(0)}\) and \(QS10_{14}^{(0)}\).
